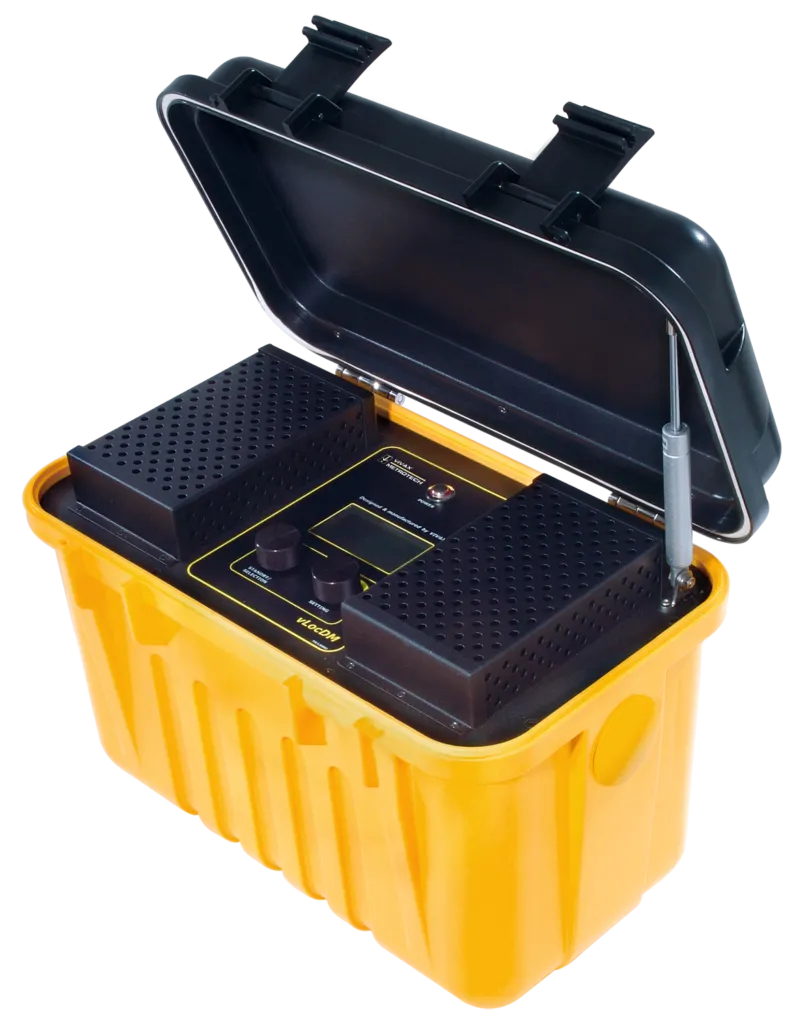

150-Watt DM Transmitter
The Loc-150Tx is a powerful 150-watt transmitter — the go-to choice for cable fault locating, finding holidays on coated pipes, and tackling deep-buried lines and long-distance pipe and cable runs. It is typically used with the Defect Mapper (DM) receiver on cathodic-protected longline pipelines, but is equally well suited to anyone needing a low-frequency, high-output transmitter.
Selectable frequencies from 98 Hz to 640 Hz cover longline work, and the two-inch backlit dot matrix display shows output current, volts, resistance, frequency, volume and high-voltage warnings. Two rotary/push control knobs give quick access to frequency, output level, menu information and active/standby modes.
Supplied with a direct connection lead, DC input lead, AC mains lead and ground stake, and packaged in a rugged, ergonomic IP54 housing, it delivers consistent current output with protection against inadvertent connection to voltages up to 250 V.
| Construction | High-impact ABS injection-molded housing |
|---|---|
| Display | 2.4 x 1.3 in (60 x 32 mm) monochrome dot matrix, LED backlight |
| Operating frequencies | 98, 128, 512, 640 Hz plus 3-8 Hz ELF combinations |
| Power output | AC: 150 W; DC 12-28 V: 50 W; DC >28 V: 150 W |
| Max output voltage | 120 V RMS |
| Max output current | 4 A RMS (3 A with three simultaneous frequencies); 100 mA-4 A selectable |
| Powered by | Cathodic protection 26-60 V DC, 100-250 V AC mains, or 12 V+ DC |
| Weight & dimensions | 27.5 lb (12.5 kg); 16.7 x 10.3 x 12.9 in (425 x 262 x 328 mm) |
| Environmental | IP54 and NEMA 4 |
