Defect Mapper

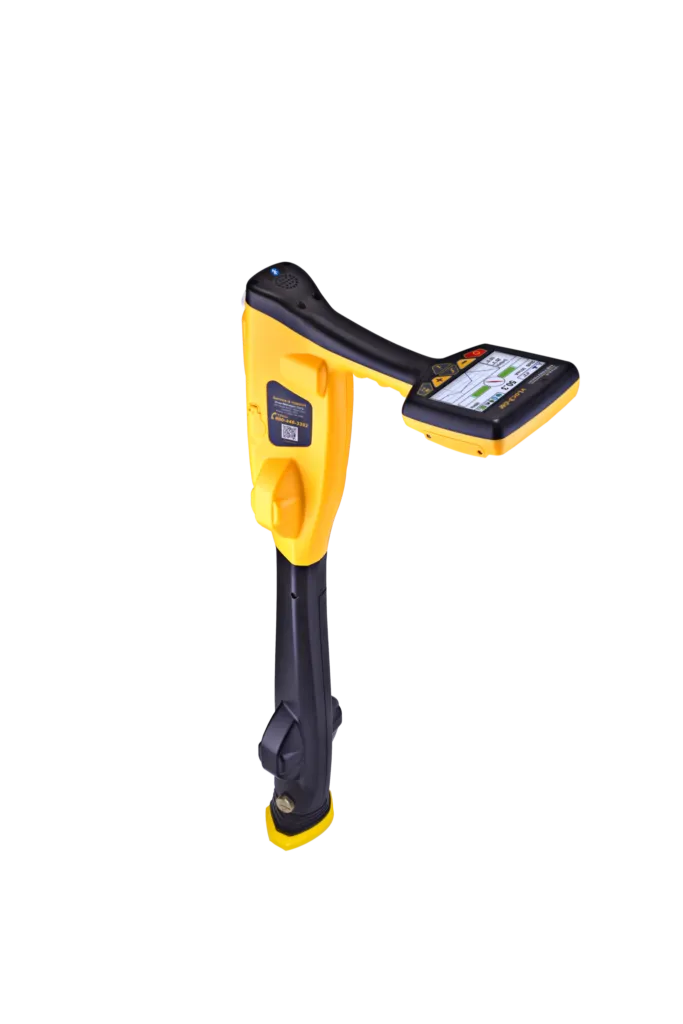

The vLoc3-DM is used to precisely locate pipelines and assist in evaluating pipe coating defects, on either transmission or distribution pipes. A complete ACVG survey can be undertaken using the vLoc3-DM and plug-in A-frame. The display is configured specifically for pipeline evaluation, and data can be graphed in real time on the receiver while still on site. The walk-back feature highlights the operator’s position on the graph, allowing them to return to a point of interest for further evaluation.
With two sets of 3D antennas, signal distortion is easily detected and displayed. The vLoc3-DM also offers Vector Locate, Transverse Graph and Plan View locate perspectives, and a removable low-frequency sensor foot for 3/6 Hz and 4/8 Hz current mapping.
| Construction | High-impact thermoplastic (ABS) injection-molded housing |
|---|---|
| Weight & dimensions | 5.7 lbs (2.6 kg) / 12.3″ (L) x 4.6″ (W) x 30.8″ (H) — 312 x 116 x 783 mm |
| Display | 4.3″ / 10.9 cm transmissive 480 x 272 pixel, 16-bit color, high-visibility LCD |
| Battery options | Rechargeable custom Li-ion with 100–240V AC mains charger, or 6 x AA alkaline |
| Battery life | Li-ion ~27 hrs intermittent use at 70°F (21°C); alkaline ~12 hrs at 70°F (21°C) |
| Operating frequencies | Active: 98 Hz – 200 kHz configurable with Signal Direction; passive power 50/60 Hz and radio 10 kHz – 22.7 kHz; mapping 3/6 Hz and 4/8 Hz |
| Operating modes | Defect Mapping, Defect Mapping A-Frame, Classic Locate, Transverse Graph, Plan View, Vector Locate, Sonde Locate |
| Data logging & transfer | 50 million records (depth, current, frequency, mode, gain, signal strength, GPS, date/time); export via MyLocator3 as csv, kml, shp, txt, xls, xlsx |
| Environmental | IP65 and NEMA 4 |
