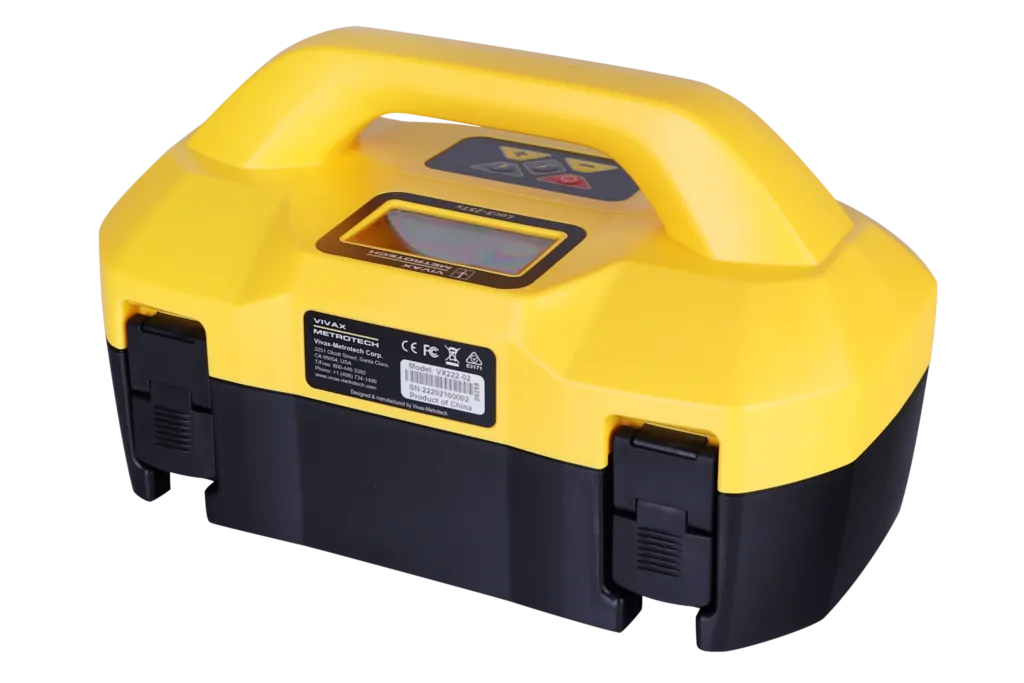

25-Watt Low-Frequency Transmitter
The Loc3-25Tx is a 25-watt low-frequency transmitter built for long-distance pipeline location, buried pipe and cable locating, and coating-defect mapping. Selectable ELF combinations down to 3 Hz suit longline work, alongside a 20 Hz to 9.82 kHz range.
The two-inch dot matrix display with LED backlight shows output current, volts, resistance and frequency, while direct-connection and clamp modes are selected automatically when an accessory is plugged in. Powered by a Li-ion rechargeable tray for the full 25 watts, and it delivers a constant current output with high-voltage protection.
Packaged in a rugged IP65 housing, the Loc3-25Tx protects against inadvertent connection to voltages up to 230 V AC and pairs with the vLoc3-DM and the wider vLoc3 receiver family.
| Model number | VX222-02 |
|---|---|
| Construction | High-impact ABS; IP65 |
| Weight & dimensions | 7.05 lb (3.19 kg); 13.1 x 7.2 x 7.3 in (332 x 182 x 185 mm) |
| Display | 2.4 x 1.3 in (60 x 32 mm) monochrome dot matrix, LED backlight |
| Power | Li-ion rechargeable tray (AC/DC adapter) |
| Battery life | 25 W 4 hrs Li-ion; 10 W 6 hrs Li-ion |
| Output power | 25 W under 45 kHz (Li-ion / 19 V adapter) |
| Max output voltage | 130 V peak (Li-ion / 19 V); 42 V (12 V adapter) |
| Max output current | 1 A RMS constant (4 A peak) |
| Frequencies | Direct: ELF 3-8 Hz with 98-640 Hz, 20 Hz-9.82 kHz; clamp: 8 kHz-9.82 kHz |
| Output protection | 21 V utility-to-ground; up to 230 V AC |
| Warranty | Two years (optional extended) |
