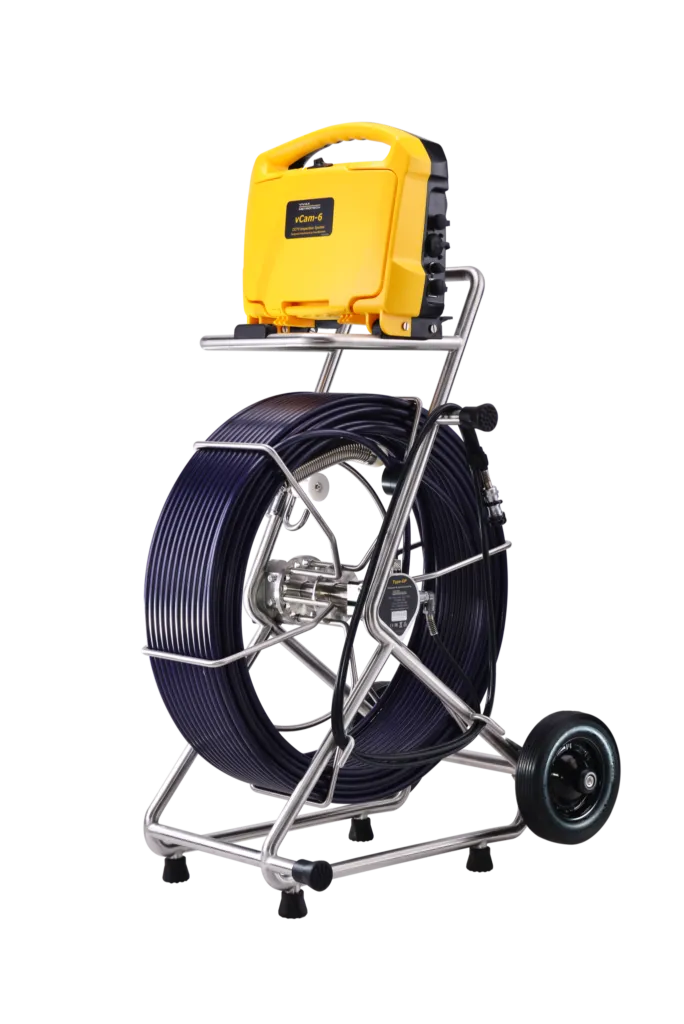

HD Pipe Inspection System
Increase productivity with the feature-rich vCam-6 inspection camera system. Built tough for everyday use, it is a great fit for plumbers, contractors, home inspectors and building maintenance teams — anyone who needs to inspect the interior of a pipe or duct. Create crisp, detailed HD video with audio comments, text descriptions, footage, date and timestamps to hand straight to your customer.
A four-hour battery and the supplied AC and DC charging leads keep you working through the day. Record to the 1 TB hard drive or a USB drive, view on the daylight-readable HD touchscreen, and locate the head with the 512/640 Hz/33 kHz sonde and traceable pushrod.
Extend the system with the smaller Type-MX reel for tighter lines or the optional adjustable Type-B skid for larger diameters. The system can be expanded with an optional vCam Wi-Fi adapter for additional wireless connectivity.
| Dimensions | 14.2 x 5.91 x 12.6 in (360 x 150 x 320 mm) |
|---|---|
| Weight | 12 lb (5.49 kg) |
| Screen | 9.7 in / 24 cm daylight-viewable (1024 x 768) |
| Battery life | Four-hour runtime (six hours with sonde off) |
| Environmental | IP54, shock resistant (lid closed) |
| Construction | Stainless-steel tubular frame with stainless hardware |
|---|---|
| Dimensions | 28 x 19.7 x 35.8 in (710 x 500 x 910 mm) |
| Weight | 200 ft 57 lb / 300 ft 68 lb / 400 ft 79 lb |
| Environmental | IP54 |
| D34-HD | 3-6 in lines; 1080p; self-leveling; 96 deg FOV; sapphire lens |
|---|---|
| D46-HD | 4-8 in lines; 1080p; self-leveling; 96 deg FOV; sapphire lens |
| Sonde | 512 Hz / 640 Hz / 33 kHz |
