Wireless Drain Inspection System

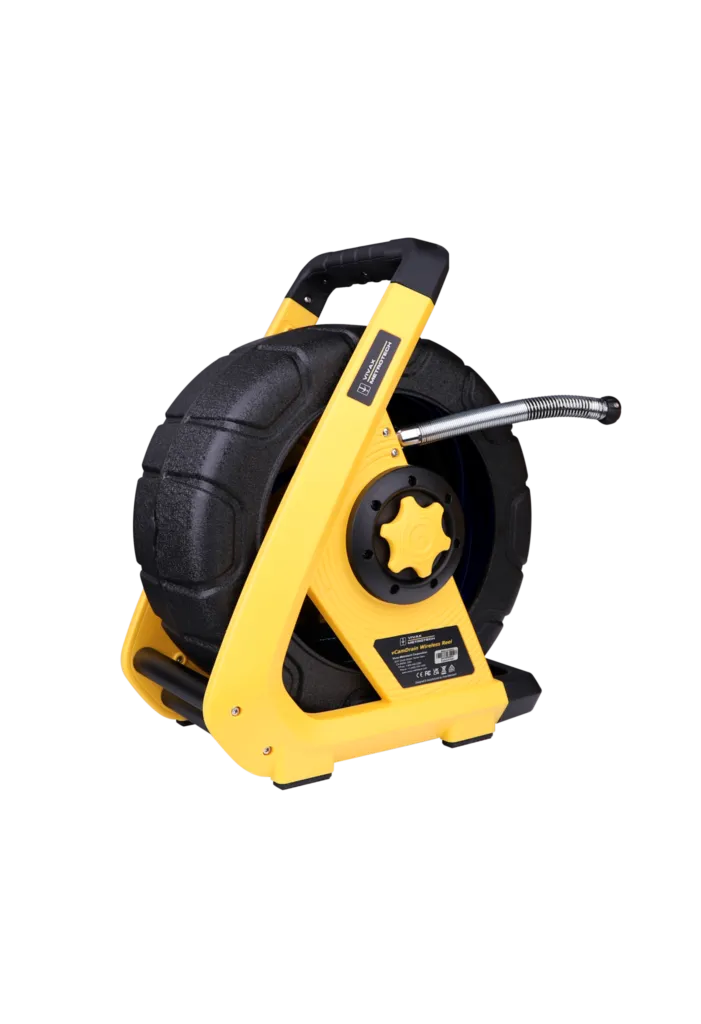

The vCamDrain is a Wi-Fi reel controlled entirely by the vCam Mobile Controller (VMC) app. Connected over Wi-Fi, the app controls the camera lights, distance-counter reset, sonde and text writer, and shows the reel’s Wi-Fi, battery and charging status. Recording is done in the app and can be instantly shared or copied to the reel’s USB port.
A stainless-steel 0.70 in (18 mm) HD camera with a sapphire lens and ultra-bright LEDs produces a crisp image of the pipe interior. The 9 mm custom pushrod balances flexibility and pushing strength for lines from 1.5 to 3 in, and its drag-resistant nylon jacket navigates multiple bends, tight turns, p-traps and most toilet traps. Both the camera head and the spring assembly with its built-in 512 Hz sonde are field-serviceable.
Internal Li-ion batteries deliver consistent power — a six-hour charge provides 12 hours of use with intermittent sonde. Balanced and ergonomic, the reel weighs just 17 lb in the 100 ft version.
| Dimensions | 13.7 x 10 x 16.5 in |
|---|---|
| Construction | High-impact ABS injection-molded housing |
| Display | Via the mobile device running the VMC app |
| Battery life | Internal Li-ion, 12 hours from a six-hour charge |
| Weight | 70 ft 15 lb (6.8 kg) / 100 ft 17 lb (7.7 kg) |
| Pushrod | 9 mm x 70 ft (21 m) or 100 ft (30 m) |
| Sonde | Selectable 512 Hz / 640 Hz / 33 kHz |
| Environmental | IP65 and NEMA 4 |
| Application | 1.5-3 in (40-75 mm) lines |
|---|---|
| Resolution | 1080p HD |
| Lighting | 48 lumens |
| Construction | Stainless steel with sapphire lens |
| Environmental | 11 BAR (non-leveling, fixed) |
