Pipe and Cable Locating Equipment
Pipe and Cable Locators
vLoc3 RTK-Pro
The vLoc3 RTK-Pro by Vivax-Metrotech is an advanced utility locator that integrates Real-Time Kinematic (RTK) GNSS technology, delivering centimeter-level accuracy for precise utility mapping. Equipped with a 4G LTE module, it connects seamlessly to NTRIP RTK casters, providing real-time corrections for accurate geospatial data collection. The device features user-friendly locate modes and an electronic spirit level, streamlining the process of confirming utility data and storing it in the cloud for easy access and export to mapping programs. This integration of utility locating and high-precision GNSS capabilities reduces the need for multiple field devices, enhancing efficiency in utility management tasks.
vLoc3-Pro
The vLoc3-Pro by Vivax-Metrotech is an advanced utility locator equipped with dual sets of 3D triaxial antennas, enabling precise detection of buried utilities and identification of signal distortions. Its high-visibility 4.3-inch color LCD displays multiple locate perspectives, including Vector Locate for off-set locating and Plan View for cable orientation visualization. The device offers a wide frequency range from 98 Hz to 200 kHz and includes eight passive locate modes, fault-find mode, and Signal Direction (SD) capabilities. User-configurable audio and vibration alerts enhance situational awareness, making the vLoc3-Pro a versatile tool for accurate utility locating and damage prevention.
vLoc3-ML
The vLoc3-ML by Vivax-Metrotech is a dual-purpose locator that combines advanced utility line detection with electronic marker system (EMS) capabilities, enabling precise pinpointing of buried passive electronic markers. Equipped with two sets of screened 3D antennas, it effectively detects signal distortion and displays information on a bright, full-color LCD. The device offers multiple locate modes—including Vector Locate, Transverse Graph, and Plan View—and features such as Signal Direction, Guidance Compass, and Distortion Alerts to enhance locating accuracy. Optional Bluetooth connectivity and data logging capabilities further support integration with external GPS devices and comprehensive data analysis.
vLoc3-5000
The vLoc3-5000 by Vivax-Metrotech is an advanced utility locator that integrates digital signal processing with a broad frequency range from 98 Hz to 200 kHz, enhancing the accuracy of detecting buried utilities. It features Signal Select™ (SiS) frequencies—491 Hz, 982 Hz, 8.44 kHz, 9.82 kHz, and 35 kHz—which provide real-time measurement of signal bleed-over caused by capacitive or inductive coupling to other utilities, aiding in positive line identification in congested areas. Equipped with internal GPS and Bluetooth, the device allows seamless data collection and real-time mapping via the VM-MAP smartphone application, facilitating efficient integration with GIS systems and Google Maps. Multiple locate modes—including Vector Locate, Transverse Graph, and Plan View—and user-configurable alerts further enhance its versatility and precision for utility locating and mapping tasks.
vLoc3-XLF
The vLoc3-XLF by Vivax-Metrotech is engineered for precise long-distance utility locating using extra-low frequencies (XLF) that minimize coupling onto adjacent lines and reduce distortion. It features dual sets of 3D antennas that detect and visually display signal distortion on a high-visibility color screen, enhancing accuracy in complex environments. The device offers multiple locate perspectives, including Vector Locate for non-walk-over locating and Plan View for cable orientation visualization. User-configurable alerts and optional Bluetooth connectivity further enhance its adaptability for various applications, such as locating long-haul fiber lines and pipeline transmission networks.
VM-810 and VM-850
Vivax-Metrotech offers two specialized utility locators to address diverse locating needs. The VM-810 operates at 83.1 kHz, making it ideal for detecting larger water and gas pipes with bell housings and gaskets, as well as ungrounded small diameter drop wires. In contrast, the VM-850 functions at a lower frequency of 9.82 kHz, providing precise location of smaller diameter utilities like CATV, power, and telephone lines, with reduced signal bleed onto adjacent services. Both models feature Distance Sensitive Left/Right Guidance™, real-time automatic gain, depth and current readout, and a lightweight, rugged design.
VM-550 and VM-560
The Vivax-Metrotech VM-550 and VM-560 are general-purpose utility locators designed for detecting buried pipes and cables in various scenarios. Both models offer passive power locating at 50/60Hz and feature three active frequencies, with the VM-550 providing 512/640Hz, 8.19kHz, and 83.1kHz, while the VM-560 offers 512/640Hz, 8.19kHz, and 480kHz. Each transmitter includes an additional 8kHz Fault-Find frequency for identifying ground-to-sheath faults when used with the VM-510 Stand Alone A-Frame fault locator. Key features of both models encompass a lightweight, rugged design, visual and audio responses, passive and active locate modes, and push-button depth readings.
VM-585
The VM-585 by Vivax-Metrotech combines utility locating and ferrous metal detection capabilities, making it ideal for tracing short-distance service drops and detecting buried ferrous objects like valve boxes and manhole covers. It operates with passive power locating at 50/60Hz and offers active frequencies of 512Hz, 8.19kHz, and 83.1kHz, providing versatility in various locating tasks. The device features audio and visual signal strength indicators, push-button depth estimation, and advanced filtering to reject non-ferrous materials such as aluminum cans and bottle caps. Its ergonomic design, lightweight construction, and durable materials ensure ease of use and longevity in the field.
vLoc3-Cam
Equipped with multiple sonde frequencies, the vLoc3-Cam is compatible with major push cameras and crawler systems, facilitating seamless integration into existing workflows. The Pushrod Trace mode enables users to trace the path of a pushrod deployed in a pipe or to locate pipes using an optional portable transmitter. Additionally, passive locate modes detect the presence of live power lines, CATV, telephone lines, and certain metallic pipes emitting 50/60 Hz signals.
Plastic Pipe Locator
Combiphon System
The Combiphon system is designed for acoustic location of non-metallic pipes, such as plastic or fiber cement, which cannot be detected using conventional electromagnetic methods. By inducing mechanical vibrations into the pipe, the system allows these vibrations to propagate to the surface, where they can be detected using a ground microphone. This method enables accurate tracing of the pipeline's path.
PinPointR
The ImpulseRadar PinPointR is a compact and robust Ground Penetrating Radar (GPR) system designed specifically for utility detection. Utilizing real-time sampling (RTS) technology, it features dual-frequency antennas operating at 400 MHz and 800 MHz, allowing simultaneous detection of both shallow and deep utilities. Controlled via an intuitive Android-driven user interface, the system offers wireless data acquisition and includes an internal GPS, with support for external GPS devices to enhance geo-referencing accuracy. Its lightweight, foldable design and 7-hour battery life ensure ease of transport and extended field operation, making it an efficient tool for locating, avoiding, or mapping underground utilities.
Fault Finder
VM-510FFL+
The VM-510FFL+ is a standalone A-frame fault locator designed to accurately detect and pinpoint sheath or ground faults in underground cables and pipes. It allows users to simultaneously locate the cable path and identify faults using simple four-button controls. The device features a high-contrast LCD with automatic backlighting, providing clear visual indicators, while its weatherproof speaker offers audible guidance. Weighing only 4.2 lbs (1.89 kg), the VM-510FFL+ combines lightweight carbon fiber construction with robust performance, making it suitable for extensive field use.
Defect Mapper
vLoc3-DM
The vLoc3-DM by Vivax-Metrotech is a specialized pipeline defect mapper designed to locate and assess coating defects on buried pipelines. Equipped with dual sets of 3D antennas, it effectively detects signal distortions, displaying them on a 4.3-inch color LCD for precise analysis. The device offers real-time on-screen mapping and data review, including a walk-back feature that guides operators to points of interest for further evaluation. Integrated Bluetooth and GPS capabilities enhance data logging and geolocation accuracy, making the vLoc3-DM an essential tool for pipeline integrity assessments.
Metal Detector
VM-585
The VM-585 by Vivax-Metrotech combines utility locating and ferrous metal detection capabilities, making it ideal for tracing short-distance service drops and detecting buried ferrous objects like valve boxes and manhole covers. It operates with passive power locating at 50/60Hz and offers active frequencies of 512Hz, 8.19kHz, and 83.1kHz, providing versatility in various locating tasks. The device features audio and visual signal strength indicators, push-button depth estimation, and advanced filtering to reject non-ferrous materials such as aluminum cans and bottle caps. Its ergonomic design, lightweight construction, and durable materials ensure ease of use and longevity in the field.

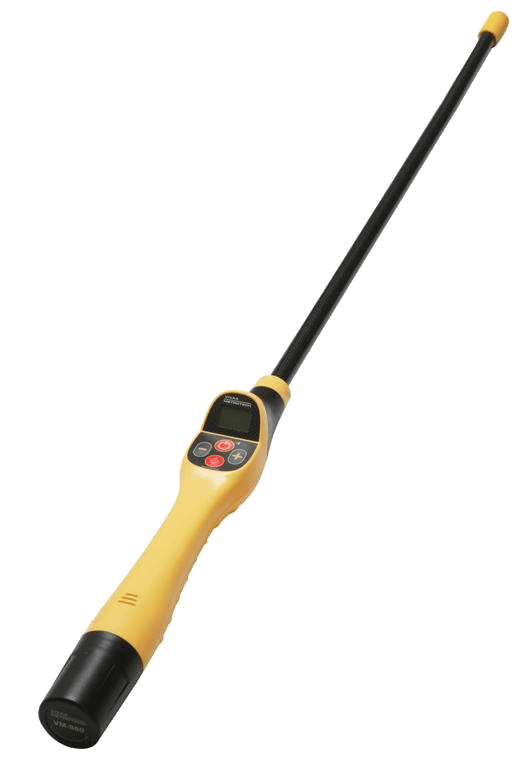

VM-880
The VM-880 is a lightweight, high-sensitivity ferrous metal detector designed to locate buried iron and steel objects, such as valve and manhole covers, even when paved over or hidden beneath soil. It exclusively detects ferrous materials, effectively rejecting non-ferrous items like aluminum cans and bottle caps, thereby reducing false positives. The device offers both audio and visual signal strength indicators, a field polarity indicator, and one-touch auto sensitivity control for efficient operation. Constructed with a submersible carbon fiber antenna tube and weighing only 1.54 lbs (0.7 kg), the VM-880 ensures durability and ease of use during prolonged field operations.
Inspection Camera Equipment
Pipe Inspection Cameras
vCamDrain
The vCamDrain is a wireless inspection system designed for pipes ranging from 1.5 to 3 inches in diameter, adept at navigating multiple bends, tight turns, p-traps, and most toilet traps. It features an 18mm stainless-steel HD camera with a sapphire lens and ultra-bright LEDs for clear imaging. Controlled via the vCam Mobile Controller (VMC) app over Wi-Fi, users can manage camera functions, record directly to their device, and instantly share files. The system is powered by internal Li-ion batteries, providing up to 12 hours of operation after a six-hour charge.
vCamMX-2+
The vCamMX-2+ is a versatile mini-inspection camera system suitable for residential plumbing and indoor commercial lines from 1.5 to 4 inches in diameter. It offers two user-changeable HD camera heads: a fixed-position 18mm and a self-leveling 26mm, both providing high-definition imaging. The system includes a locatable three-frequency sonde and a traceable pushrod, enhancing utility locating capabilities. With an 8-inch daylight-viewable LCD and one-touch recording to a USB drive, the vCamMX-2+ ensures efficient inspections and easy data management.
vCam6
The vCam-6 HD inspection system is engineered for a range of inspections, including municipal collection systems, residential plumbing, and lateral lines from 3 to 8 inches in diameter. It features 1080p HD self-leveling camera heads and a 9.7-inch daylight-viewable display for clear visuals. The system includes a 1TB internal hard drive, one-touch recording, and JPEG image capture, facilitating comprehensive documentation. Its stainless-steel reel and camera heads, along with locatable sonde and traceable pushrod, ensure durability and precise locating capabilities.
3D Pointcloud Camera
RVMax 360
The RinnoVision RV-MAX 360 is an advanced manhole inspection camera designed to enhance underground inspections with efficiency and safety. Equipped with a 360-degree 4K virtual reality camera and ultra-bright 6600-lumen LED lighting, it delivers comprehensive, high-definition visuals of confined spaces. The system includes a 29.5' extendable fiberglass pole and a 100' tripod, allowing for versatile deployment in various inspection scenarios. Additional features such as six adjustable light modes, embedded GPS for georeferencing, and an IP68-rated water and dust-resistant design make the RV-MAX 360 a robust solution for efficient and thorough inspections.
Jetter Camera
GP SewerCam
The GP Sewer Cam is a rugged and cost-effective sewer inspection system that integrates GoPro® HERO® camera technology for high-definition video capture. Designed to attach seamlessly to jetter hoses, it enables real-time assessment of pipe conditions, allowing operators to confirm cleaning effectiveness and identify obstructions or damages. Its user-friendly design allows field workers to operate the system independently, utilizing smartphones as remotes to control the camera and share footage instantly. This tool is ideal for professionals seeking an affordable solution for diagnosing, verifying, and documenting sewer maintenance tasks.
Sonde Locator
vLoc3-Cam
Equipped with multiple sonde frequencies, the vLoc3-Cam is compatible with major push cameras and crawler systems, facilitating seamless integration into existing workflows. The Pushrod Trace mode enables users to trace the path of a pushrod deployed in a pipe or to locate pipes using an optional portable transmitter. Additionally, passive locate modes detect the presence of live power lines, CATV, telephone lines, and certain metallic pipes emitting 50/60 Hz signals.
Ground Penetrating Radar
Ground Penetrating Radar
PinPointR
The Impulse Radar PinPointR is a compact and robust Ground Penetrating Radar (GPR) system designed specifically for utility detection. Utilizing real-time sampling (RTS) technology, it features dual-frequency antennas operating at 400 MHz and 800 MHz, allowing simultaneous detection of both shallow and deep utilities. Controlled via an intuitive Android-driven user interface, the system offers wireless data acquisition and includes an internal GPS, with support for external GPS devices to enhance geo-referencing accuracy. Its lightweight, foldable design and 7-hour battery life ensure ease of transport and extended field operation, making it an efficient tool for locating, avoiding, or mapping underground utilities.
Water Leak Detection Equipment
Compact Leak Detection
Stethophon 04
The Stethophon 04 is a compact listening device designed for detecting and amplifying structure-borne noise, making it ideal for pinpointing water leaks. It offers undistorted sound reproduction, even for very low noise levels, ensuring accurate leak detection. Its ergonomic design and ease of use make it suitable for quick surveys of hydrants, valves, piping, or meters.
Ground Microphone
SeCorrPhon AC200
The SeCorrPhon AC 200 is a multifunctional leak detector that combines pre-location, pinpointing, and correlation in one system. This integration allows users to confidently locate leaks under various ambient conditions. Its intuitive interface enables quick switching between applications, enhancing efficiency in leak detection tasks.
AquaPhon A200
The Aquaphon A200 is an advanced acoustic leak detection system suitable for both pre-location and pinpointing of leaks in water pipe networks. It boasts high-quality microphones, intelligent analysis functions, and a visual display of results, facilitating accurate and reliable leak detection. The system's wireless handling and ergonomic design ensure user comfort and versatility in various leak detection scenarios.
AquaTest T10
The vCamDrain is a wireless inspection system designed for pipes ranging from 1.5 to 3 inches in diameter, adept at navigating multiple bends, tight turns, p-traps, and most toilet traps. It features an 18mm stainless-steel HD camera with a sapphire lens and ultra-bright LEDs for clear imaging. Controlled via the vCam Mobile Controller (VMC) app over Wi-Fi, users can manage camera functions, record directly to their device, and instantly share files. The system is powered by internal Li-ion batteries, providing up to 12 hours of operation after a six-hour charge.
Correlator System
SeCorrPhon AC200
The SeCorrPhon AC 200 is a multifunctional leak detector that combines pre-location, pinpointing, and correlation in one system. This integration allows users to confidently locate leaks under various ambient conditions. Its intuitive interface enables quick switching between applications, enhancing efficiency in leak detection tasks.
SeCorr C200
The SeCorr C200 is a portable, high-performance correlator designed to locate leaks in underground pipelines quickly and accurately. Its user-friendly interface and advanced functions make it suitable for complex location scenarios. The device enables reliable leak detection, allowing for precise excavation and repair.
Noise Logger
Sepem 155 Logger
The SePem 155 is a noise logger system designed for early detection and monitoring of leaks in water pipe networks. Equipped with highly sensitive Piezo microphones, it can detect noises over large distances, facilitating effective leak identification. The data is easily retrievable via bidirectional radio, allowing for efficient data collection without the need to open covers with the Master Controller in vehicle patrols.
Tracer Gas
VarioTec 460 Tracer Gas
The Variotec 460 Tracergas is a specialized device for leak detection in underground pipes using tracer gas methods. It offers high sensitivity with a resolution down to 0.1 ppm H₂, ensuring precise leak localization. The device's low cross-sensitivity to moisture and methane enhances its reliability in various environmental conditions.
Gas Leak Detection Equipment
Outdoor Leak Detection
Ex-Tec HS 600 Series
The Ex-Tec HS 600 series comprises combination measuring devices equipped with infrared sensors and integrated ethane detectors. These features enable clear localization of leaks in underground gas pipelines. The devices are designed for professional use in gas supply applications, offering reliable detection capabilities.
SR-LD 200/800
The SR-LD 200 and SR-LD 800 are laser remote detectors capable of detecting methane gas leaks from distances up to 200 meters. Utilizing TDLAS technology, they provide accurate methane detection without interference from other gases. These devices enhance efficiency and safety in inspecting hard-to-reach areas, such as household connections behind fences or gas pipelines under bridges.
Variotec EX 400 Series
The Variotec EX 400 series offers cost-effective combination measuring devices for gas supply applications. These devices are designed for professional use, providing reliable detection and measurement of gas concentrations in various scenarios. Optional features include ethane analysis to distinguish between natural gas and swamp gas.
Indoor Leak Detection
EX-TEC PM 500 Series
The Ex-Tec PM 500 series includes portable gas measuring and warning devices that detect up to five different gases when fully equipped. Their modular design allows customization to specific applications, such as locating leaks in accessible gas pipes and assessing explosion risks. These devices provide essential safety features for professionals working with gas installations.
Snooper Mini
The Snooper Mini is a compact and robust gas leak detector suitable for inspecting accessible gas lines and fittings for external leaks. It offers a decisive advantage over traditional leak detection sprays by not only indicating the presence of a leak but also displaying the concentration at the leak site. Its user-friendly design makes it ideal for plumbers and gas distribution departments.
Conduit Rodders and Tracers
Conduit Rodders - Traceable
Duct Hunter
The Duct Hunter is designed for tracing and locating underground conduits and pipes, particularly those made of non-conductive materials like plastic. It features a fiberglass rod embedded with a copper trace wire, allowing for detection at depths up to 10 feet. Available in various diameters and lengths, it accommodates a range of conduit sizes and project scopes. This rodder is ideal for mapping sewer laterals, locating fiber optic cables, and other utility installations requiring precise underground tracing.
Mini Duct Hunter
The Mini Duct Hunter is a versatile traceable rodder designed for locating and mapping underground ducts and pipes, particularly those made of non-conductive materials. Available in various diameters and lengths, it accommodates different conduit sizes and project requirements. This rodder is ideal for applications such as tracing sewer laterals, locating fiber optic cables, and mapping underground conduits in scenarios requiring precise navigation through tight bends and narrow pathways. Its durable construction and flexibility make it suitable for a wide range of utility installation and maintenance tasks.
Conduit Rodders - Nontraceable
Good Buddy
The Good Buddy is a versatile rodder suitable for installing cables in conduits ranging from 2 to 4 inches in diameter. It features a non-conductive fiberglass rod with a high tensile strength and a flexible bend radius, enabling navigation through tight turns and long runs. This rodder is ideal for tasks such as manhole-to-riser installations and cable vaults. Its durable construction and adaptability make it a reliable choice for various conduit rodding applications.
Sondes
Vivax-Metrotech Sondes
D18
The D18 sonde is a compact transmitter operating at 33 kHz, designed for locating small-diameter non-metallic pipes and ducts. Measuring 18mm in diameter and 81mm in length, it can be detected at depths up to 15 feet (4.5 meters). Its small size makes it ideal for tracing narrow conduits and pinpointing blockages or collapses. Constructed with durable materials, it ensures reliable performance in various underground conditions.
D22
The D22 sonde is available in 9.8 kHz and 83.1 kHz frequencies, suitable for locating non-metallic pipes and ducts. With a diameter of 22mm and length of 114.3mm, it offers a depth range of up to 8 feet (2.4 meters). This sonde is compatible with receivers matching its frequencies, facilitating versatile utility locating tasks. Its robust construction ensures durability in various field conditions.
D23
The D23 flexible sonde operates at 512 Hz or 640 Hz, designed for locating in cast iron and non-metallic pipes. Its flexible construction allows navigation through bends and narrow pipelines, with a depth range of up to 22 feet (7 meters). Measuring 23mm in diameter, it's suitable for tracing paths and identifying blockages in complex utility networks. Durable materials ensure reliable performance in challenging environments.
D38
The D38 sonde is available in 9.8 kHz, 33 kHz, and 83.1 kHz frequencies, designed for locating larger non-metallic pipes and ducts. With a diameter of 38mm and length of 130mm, it can be detected at depths up to 16 feet (5 meters). This sonde is ideal for tracing larger conduits and pinpointing issues within substantial utility infrastructures. Its sturdy construction ensures longevity and reliability in the field.
D64
The D64 sonde operates at 9.8 kHz, 32.8 kHz, or 83.1 kHz frequencies, suitable for deep locating in non-metallic pipes and ducts. Measuring 64mm in diameter and 186mm in length, it offers a depth range of up to 26 feet (8 meters). This sonde is particularly useful for locating deep sewer lines and large pipelines. Constructed with robust materials, it withstands harsh underground conditions, ensuring consistent performance.
Prototek Sondes
Flushable Transmitters
Prototek's flushable transmitters are designed for efficient tracking within sewer and drainage systems, utilizing the industry-standard 512 Hz frequency for compatibility with various receivers. Encased in durable, waterproof materials, these transmitters are engineered to withstand the rigors of sewer environments. Their buoyant design facilitates easy retrieval, and the compact form allows navigation through pipes as small as 3 inches in diameter. An LED indicator provides visual confirmation of transmission status, ensuring reliable operation during inspections.
FD Series
The FD Series DuraSonde transmitters from Prototek are built for locating in cast iron and non-metallic lines, transmitting at 512 Hz for effective signal penetration. Models like the FD-10 are compact, suitable for pipes as small as 2 inches, while the FD-20 offers enhanced durability for challenging terrains. These transmitters feature stainless steel heads and polycarbonate housings, ensuring robustness and longevity. Powered by standard alkaline batteries, they provide reliable performance for extended field operations.
Miniature Series
Prototek's miniature transmitters are designed for tracing paths of small-diameter pipes, ducts, and conduits, effectively locating blockages or collapses. Their compact size allows them to navigate through tight bends and narrow pipelines, making them ideal for complex utility networks. These battery-operated transmitters are compatible with standard locating equipment, facilitating seamless integration into existing workflows. Durable construction ensures they withstand the demands of underground environments.
HD Series
The HD (Heavy Duty) transmitters from Prototek are engineered for demanding locating tasks in larger pipelines and conduits. Emitting strong signals at standard frequencies, they penetrate deep and dense materials, ensuring accurate detection. Robust construction materials provide resistance to harsh environmental conditions, extending the lifespan of the device. These transmitters are suitable for locating deep sewer lines, water mains, and other substantial underground utilities.
LD Series
Prototek's LD (Light Duty) transmitters are tailored for less demanding applications, offering a balance between performance and portability. They operate at standard frequencies compatible with most locating equipment and are ideal for shallow or less complex utility networks. Lightweight and easy to deploy, these transmitters are suitable for quick diagnostics and routine inspections. Despite their light-duty designation, they maintain durability and reliability in typical field conditions.
